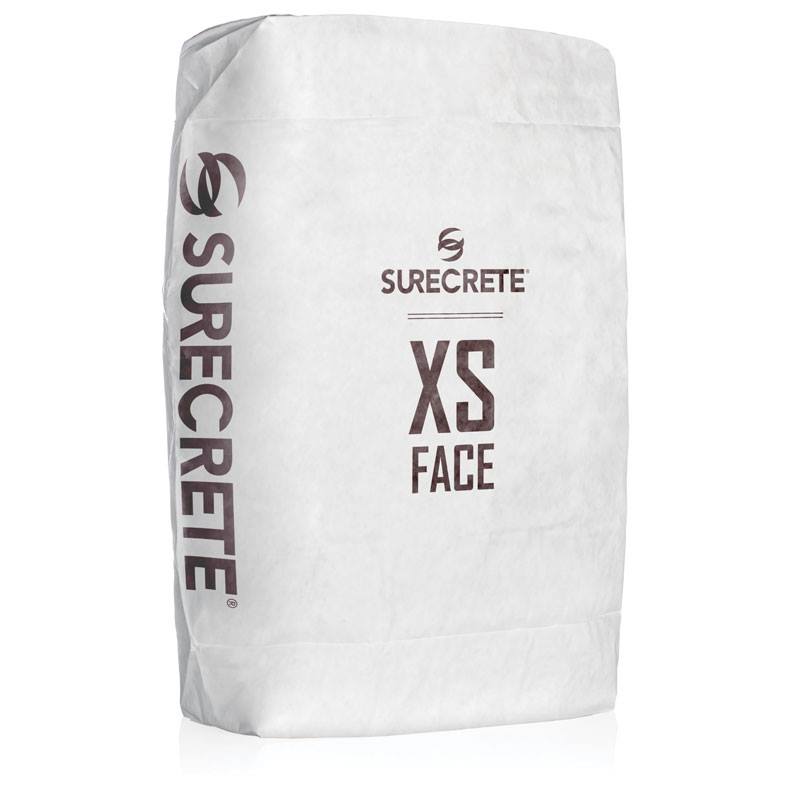

XS GFRC Face

TECHNICAL DATA SHEET | TDS CLICK HERE

SAFETY DATA SHEET | SDS CLICK HERE

Requires (1) gallon of XS Modifier, sold separately.

XS GFRC Face is a dual component cement based bag mix that perfectly reads the mold or casting surface upon which it is placed, providing a near flawless precast piece. It is not a “stand alone” mix, but is designed to be used in concert with XS Precast or XS Backer. XS Face greatly reduces the materials and labor required to construct traditional precast concrete. Reinforcement steel is eliminated, thinner precast pieces are routine, quicker production times are accomplished, and no “B” mold is required.

A stronger, denser and more flexible cementitious composite is created by combining cutting-edge technology with modern fiber advancements. With a wide range of coloring and texture selections along with the manipulation of water demand and placement, design considerations are nearly limitless. XS GFRC Face produces concrete countertops, fireplace mantles and facades, shower surrounds, wall panels, furniture and many other architectural elements. XS Face is the perfect medium for residential, commercial, and industrial applications.

Best Way To Apply Face Mix

The most common method utilizes a traditional compressed air supplied hopper gun, such as Marshalltown Sharpshooter. Spray gun orifice should be approximately ¼” (6.3 mm) or a little larger. Air compressor should be set to approximately 40 PSI (276 kPa) with capacity of the delivery approximately 8 ft³ (0.23m³) per minute. Other methods of application include by trowel or placed by hand.

XS GFRC Face Mix Quick Facts

Packaging | 50 lb. Bag

Cement Type | White Portland (XS) & Gray Portland (DFRC)

XS Modifier | 1 gal per bag

Coverage Rate | 50 sq. ft. @ 1/8 inch

Xtreme Series GFRC Face Technical Spec’s

COMPRESSIVE STRENGTH ASTM C-109-08

• 3 day – 9,340 PSI (64,397 kPa)
• 7 day – 10,120 PSI (69,775 kPa)
• 28 day – 10,120 PSI (69,775 kPa)

FLEXURAL STRENGTH ASTM C-348-08

•  3 day – 820 PSI (5,654 kPa)
• 7 day – 835 PSI (5,757 kPa)
• 28 day – 660 PSI (4,551 kPa)

TENSILE STRENGTH ASTM C190-85

• 3 day – 405 PSI (2,792 kPa)
• 7 day – 490 PSI (3,378 kPa)
• 28 day – 505 PSI (3,482 kPa)
